Genesis GX — Master Series Flagship 4-Output Dual-Frequency Word Clock
Genesis GX (Master Series)
Master Series Flagship 4-Output Dual-Frequency Word Clock Generator
The Genesis GX is Silent Angel's flagship Master Series word clock, engineered to synchronize up to four digital audio and network components simultaneously from a single ultra-low-phase-noise timing reference. Featuring two 10MHz BNC outputs and two 25MHz BNC outputs alongside dual-mode AC / 12V DC power and a chassis grounding terminal, it unifies timing across mixed-frequency reference systems.
System Fit & Compatibility
-

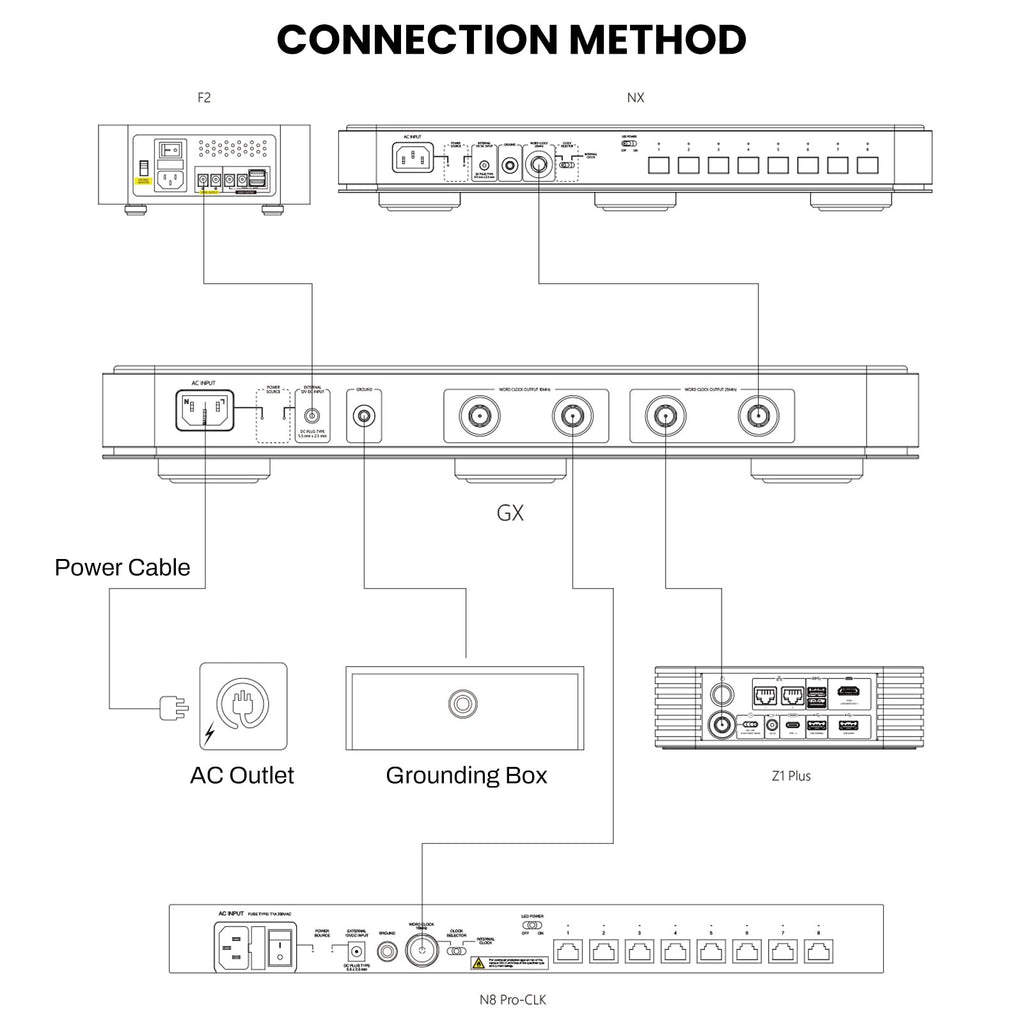

Role in Your System: Central master clock generator that locks timing across up to four components—providing two 25MHz outputs (for Bonn NX/N8C, Rhein ZX/Z1 Plus/Z1C, Munich MU) and two 10MHz outputs (for Bonn N8 Pro or third-party 10MHz DACs).
-
Modular Upgrade Path: Runs on internal AC power out of the box, and upgrades with a Forester FX / F2 (12V DC) linear power supply and Forester FGC active grounding box.
Key Engineering Highlights
-
Four Independent Gold-Plated BNC Outputs (2x 10MHz + 2x 25MHz): Ports 1 & 2 output precision 10MHz clock signals while Ports 3 & 4 output 25MHz clock signals, allowing you to clock Silent Angel 25MHz gear and 10MHz components from one box.
-
Dual-Mode AC + 12V DC Power Architecture: Operates via its internal AC power supply, and automatically switches to external 12V DC power when connected to a Forester FX or F2 linear power supply.
-
Dedicated Chassis Grounding Post: Rear grounding terminal connects directly to the Forester FGC active grounding box to eliminate ground-plane micro-interference.
-
Includes Four BNC Clock Cables: Ships complete with four matched coaxial BNC clock cables to wire your entire stack out of the box.
Connections, Power & Clock Specs
-

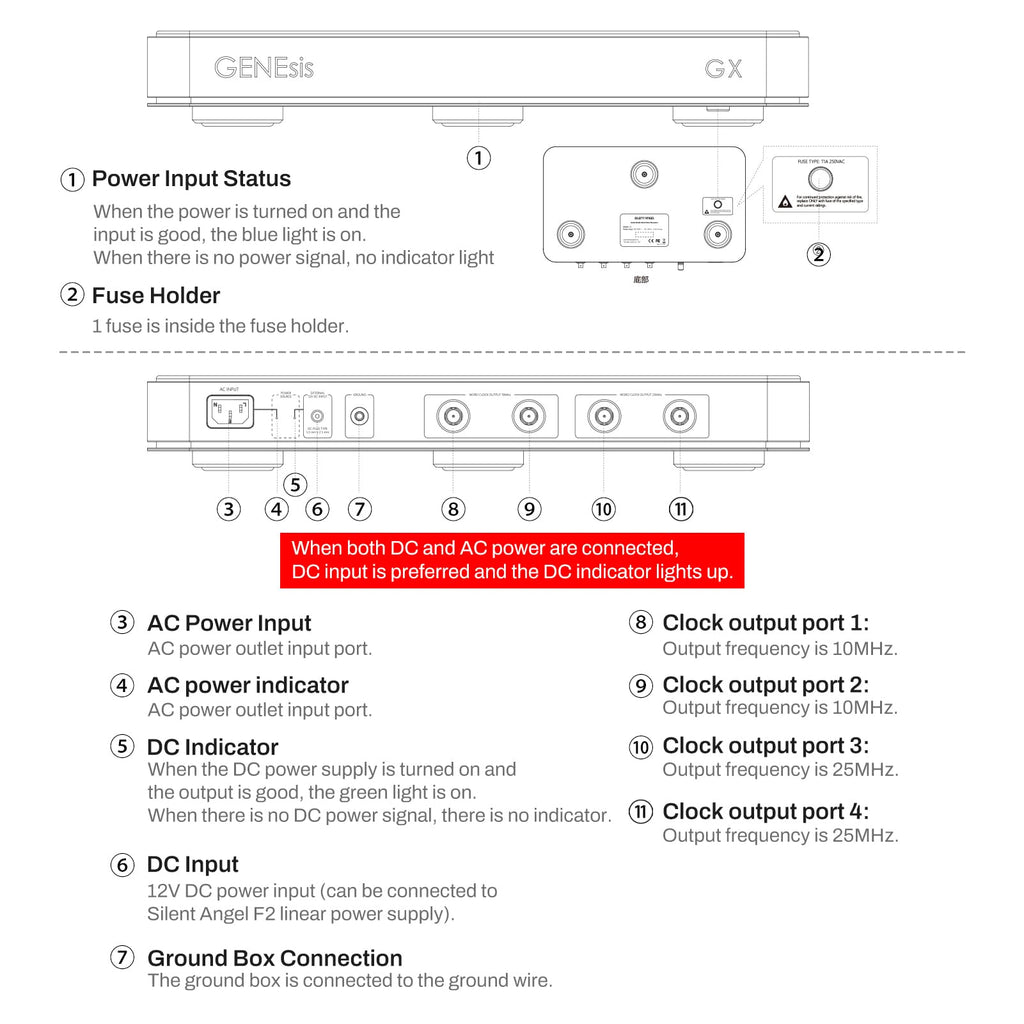

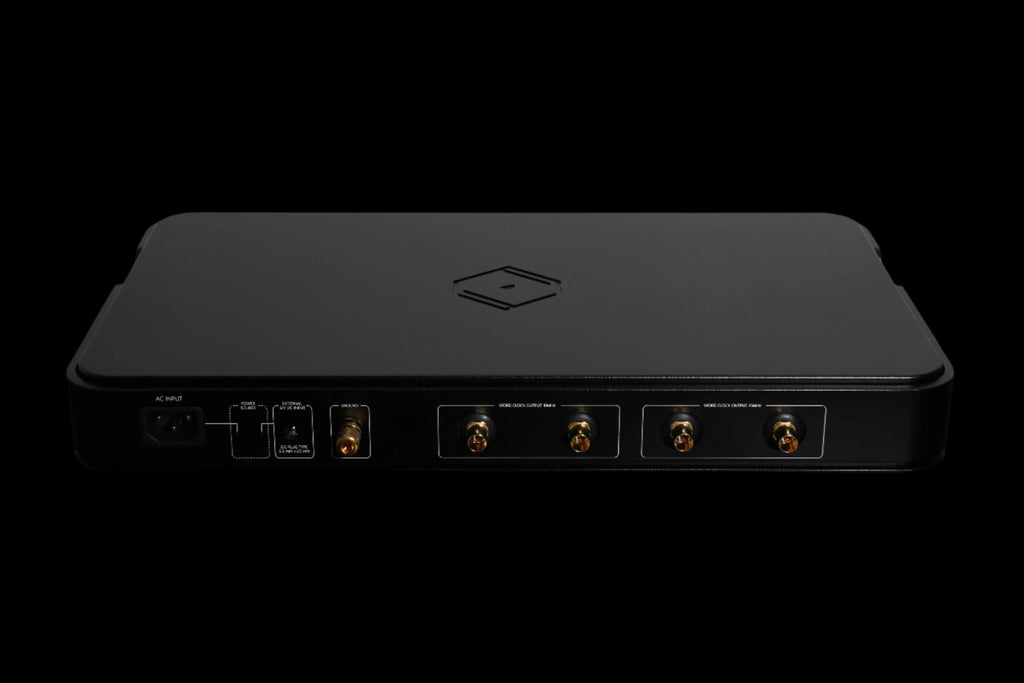

Clock Outputs: 4 x Gold-plated BNC outputs (Port 1: 10MHz, Port 2: 10MHz, Port 3: 25MHz, Port 4: 25MHz)
-
Grounding Port: 1 x Rear grounding terminal
-
Power Input: Internal AC power inlet (T1A 250VAC fuse) + External 12V DC input (5.5mm x 2.5mm; auto-prioritizes DC when connected to Forester FX or F2)
In the Box
-
Genesis GX Word Clock x 1
-
BNC Clock Cables x 4
-
AC Power Cord x 1
-
Quick Start Guide & Warranty Card x 1
