Bonn N8S - Hi-Fi Grade Network Switch (Preorder)

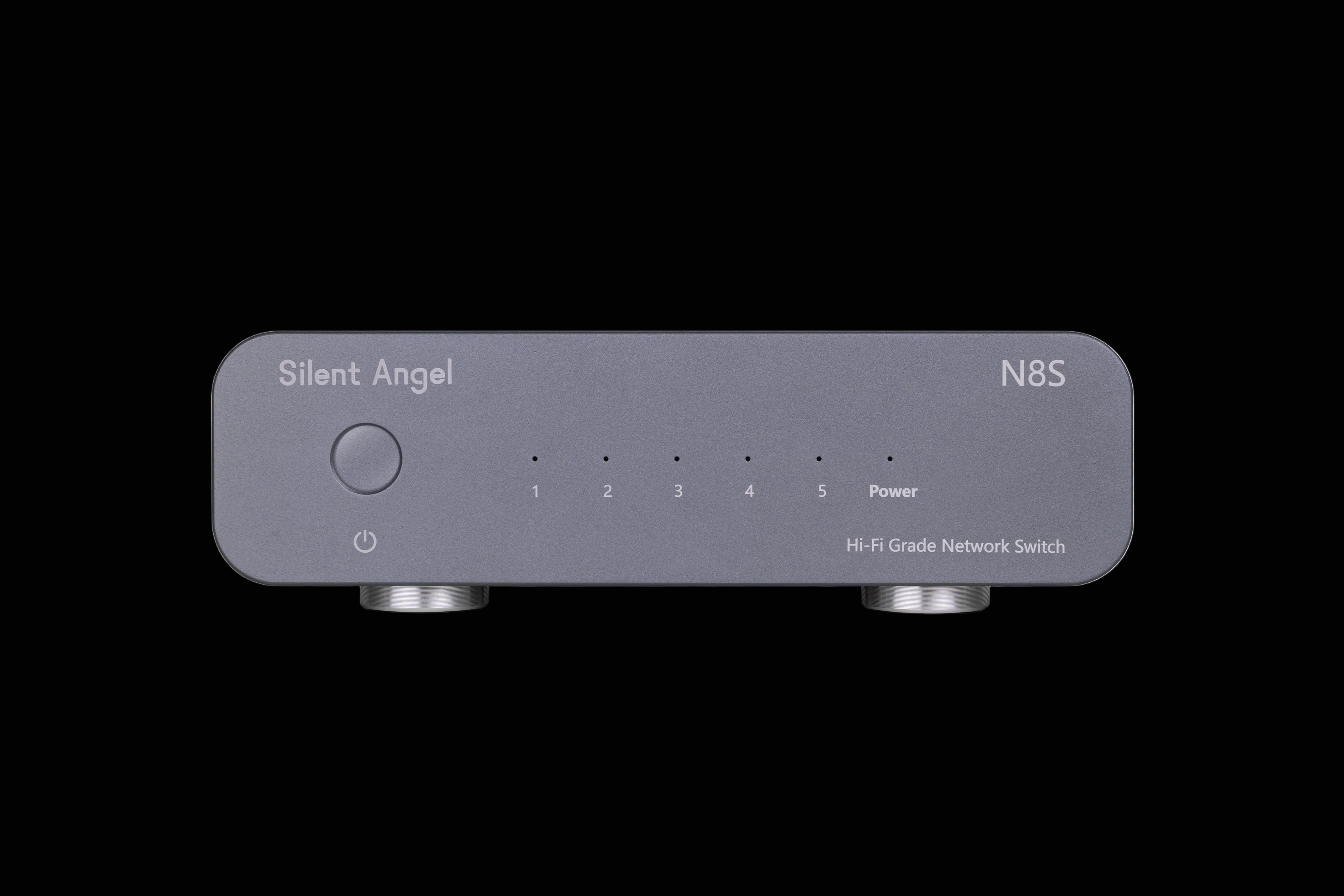

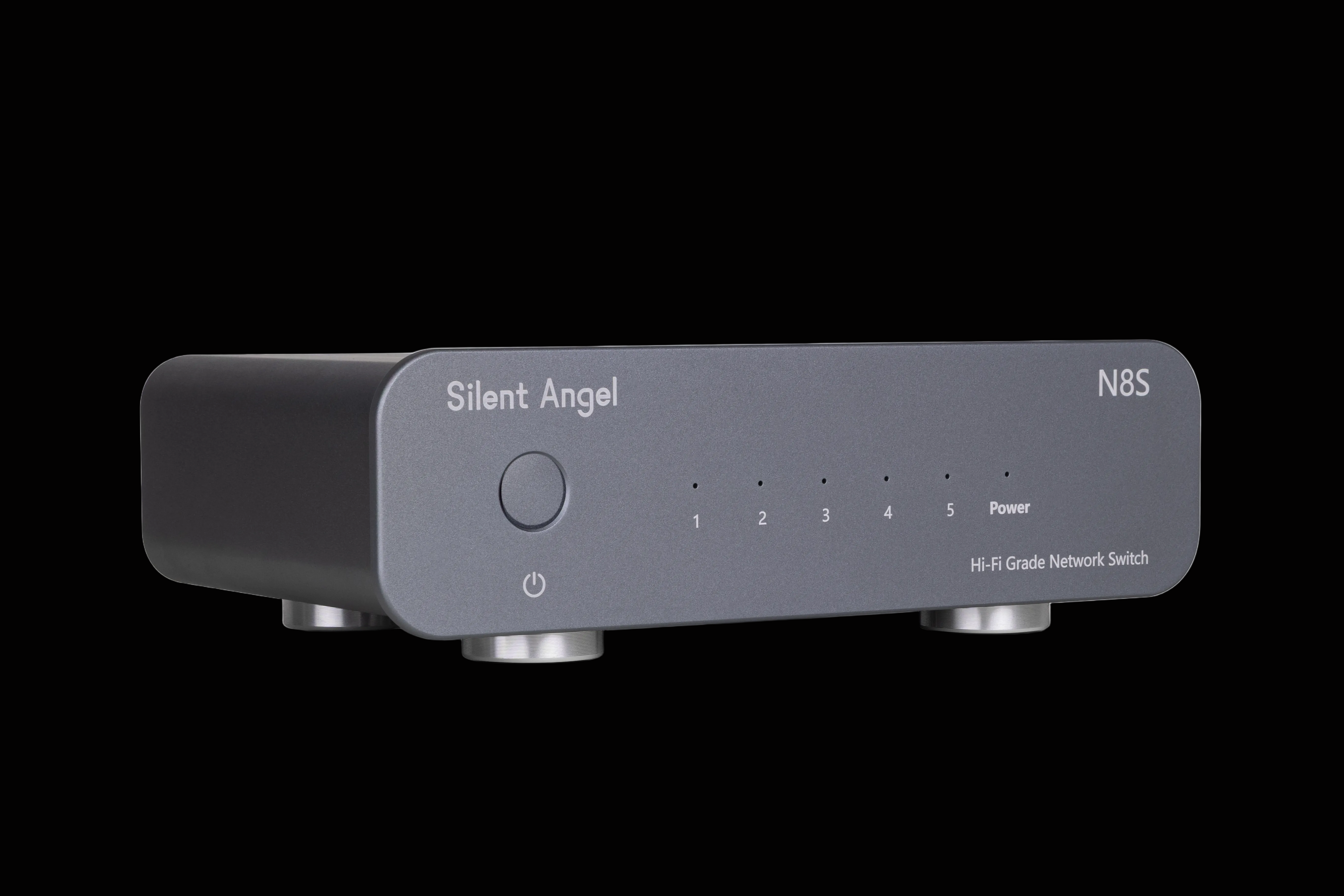

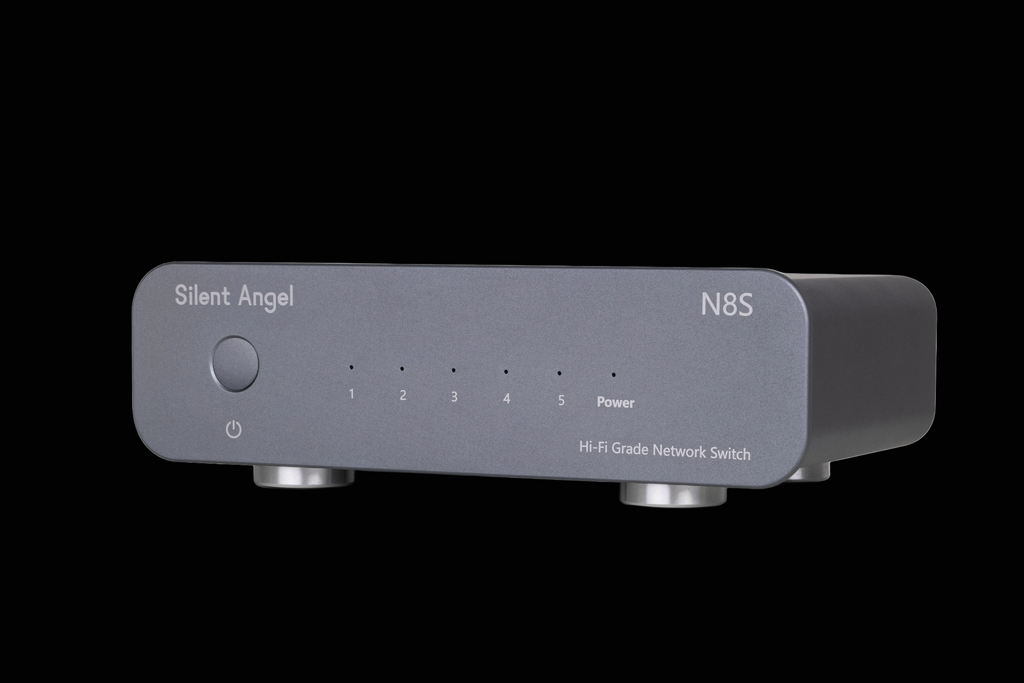

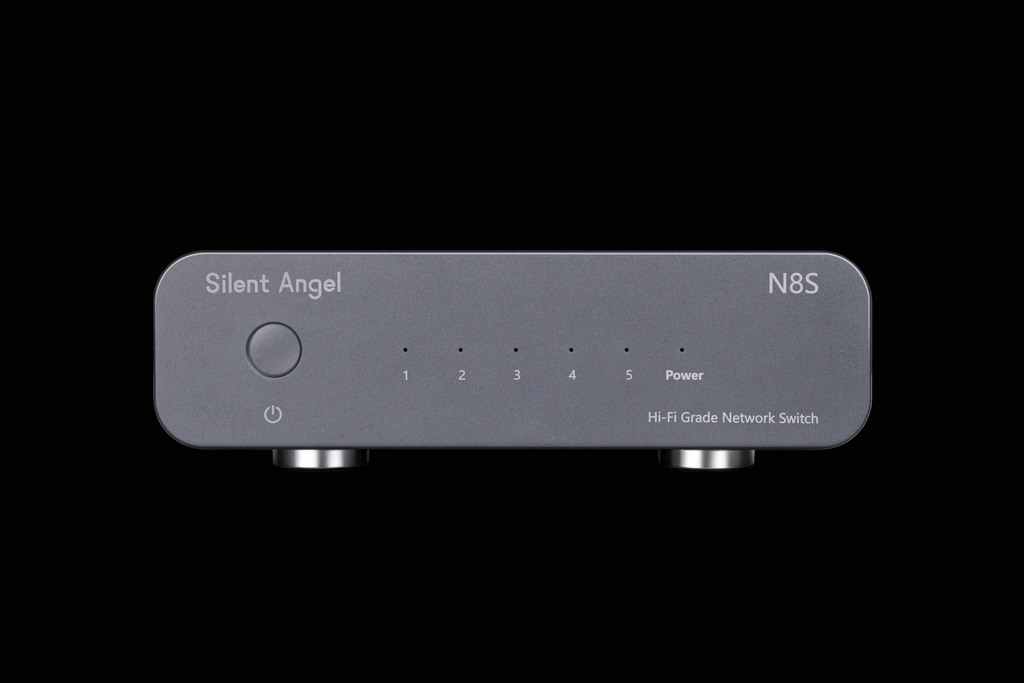

Silent Angel N8S - Hi-Fi Grade Network Switch

Built for the sound of your network.

The Silent Angel N8S is a high-performance network switch designed specifically for high-fidelity audio systems. Building on the success of the N8, the N8S adds fiber-optic connectivity alongside Gigabit Ethernet, providing a refined network foundation for modern digital audio systems.

Designed with audio-focused components and precision clocking, the N8S combines advanced network connectivity with carefully engineered power and signal management.

Engineered for High-Fidelity Audio

The N8S features a carefully selected internal architecture designed to minimize network interference and improve signal integrity throughout the audio system.

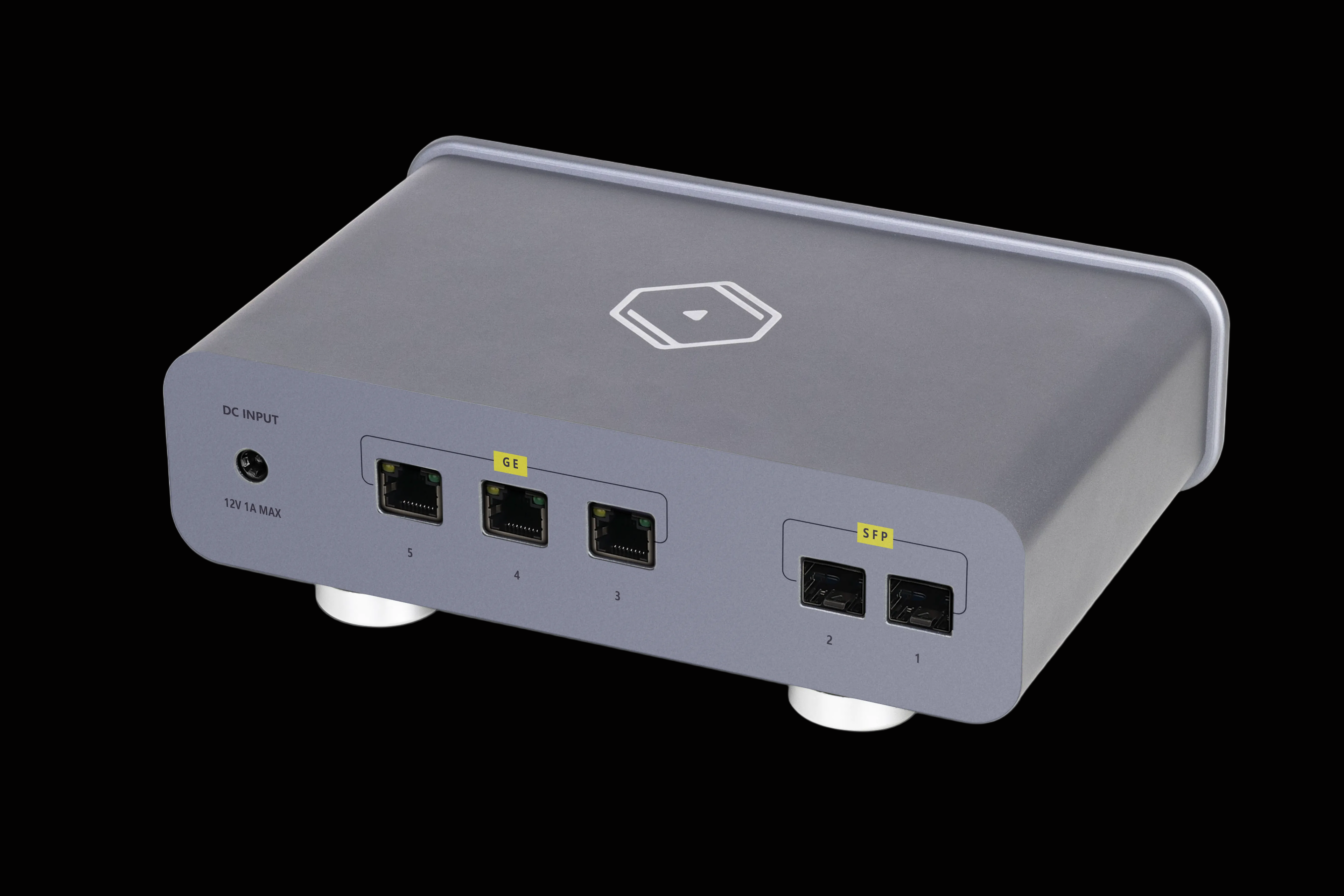

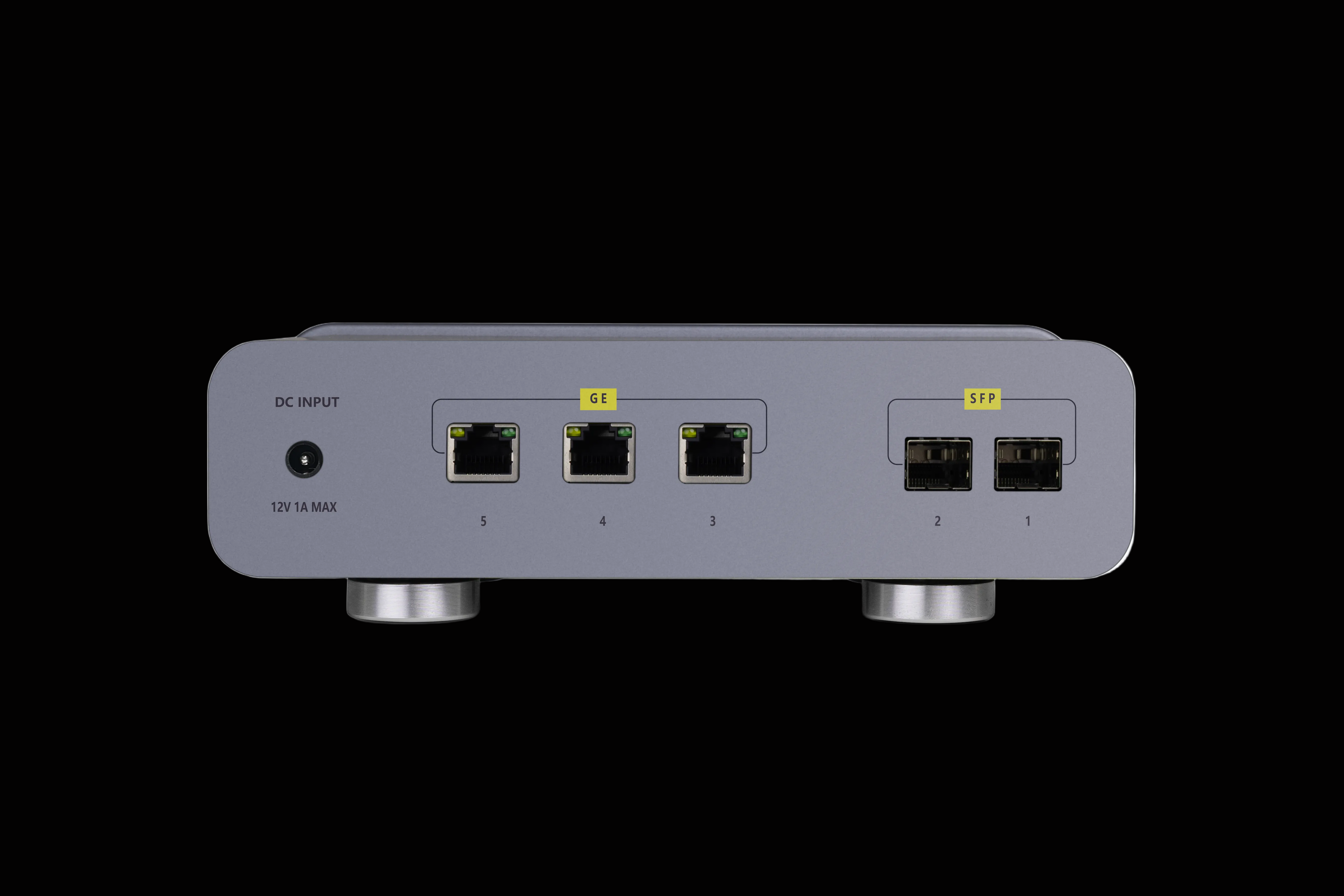

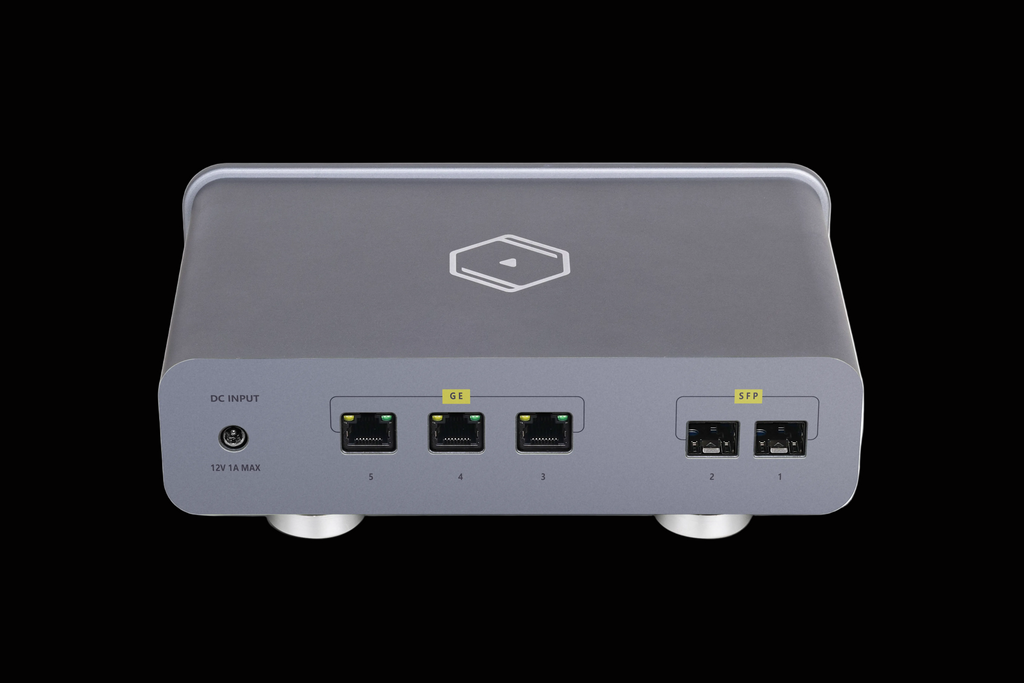

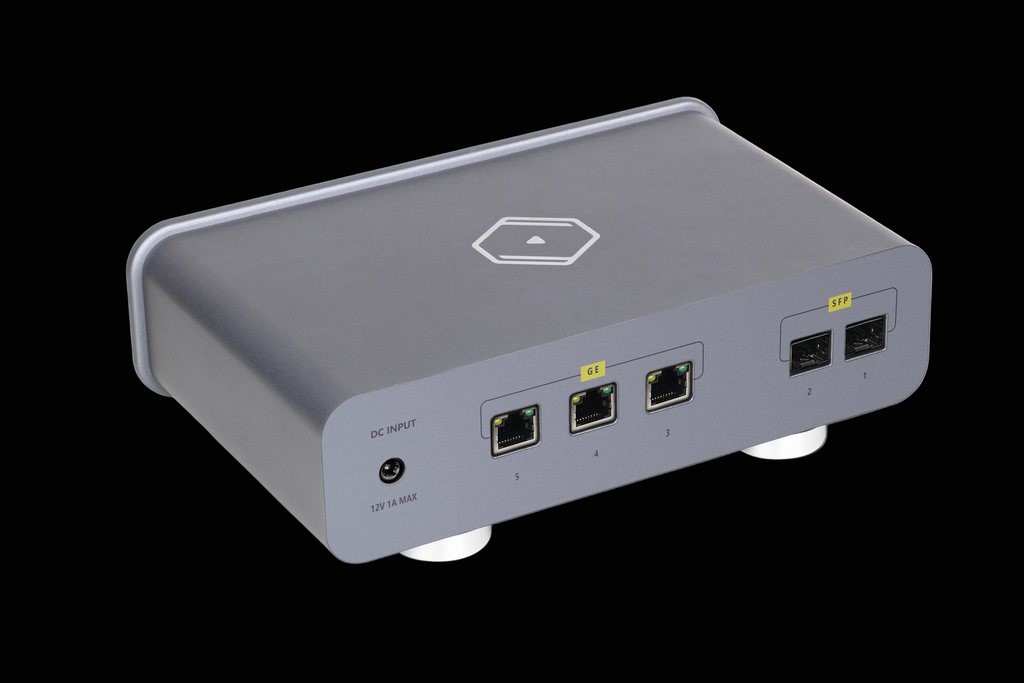

2 x SFP + 3 x RJ45 Ports

Connect fiber-optic and copper Ethernet devices within your audio network.

High-DCRR, High-Temperature Network Transformers

Selected specifically to help purify network interference and reduce transmission noise for Hi-Fi applications.

Japanese Audio-Grade Capacitors Throughout

Long-life, high-temperature Japanese electrolytic capacitors, WIMA MKP film capacitors, and X7R-grade or better MLCCs are used throughout the signal path.

Multi-Stage High-Current Linear LDO Power

A high-current, low-ripple power architecture uses an ADI LT3042 + PNP front stage, followed by three SGM2208 regulators for further noise reduction.

Dedicated 0.1 ppm TCXO Master Clock

The main controller operates from an independent 0.1ppm TCXO, supported by optimized trace routing and linear LDOs for improved current-noise performance.

Connectivity

• 2 x Optical Gigabit / SFP ports
• 3 x RJ45 Gigabit Ethernet ports

• 10 Gbps fiber-optic support x 2 with compatible GBIC modules
• 3 x 1Gbps copper Ethernet ports
• 12V / 1A DC input

The three RJ45 ports are designed for flexible system integration, with one connection for the router and two connections for audio devices.

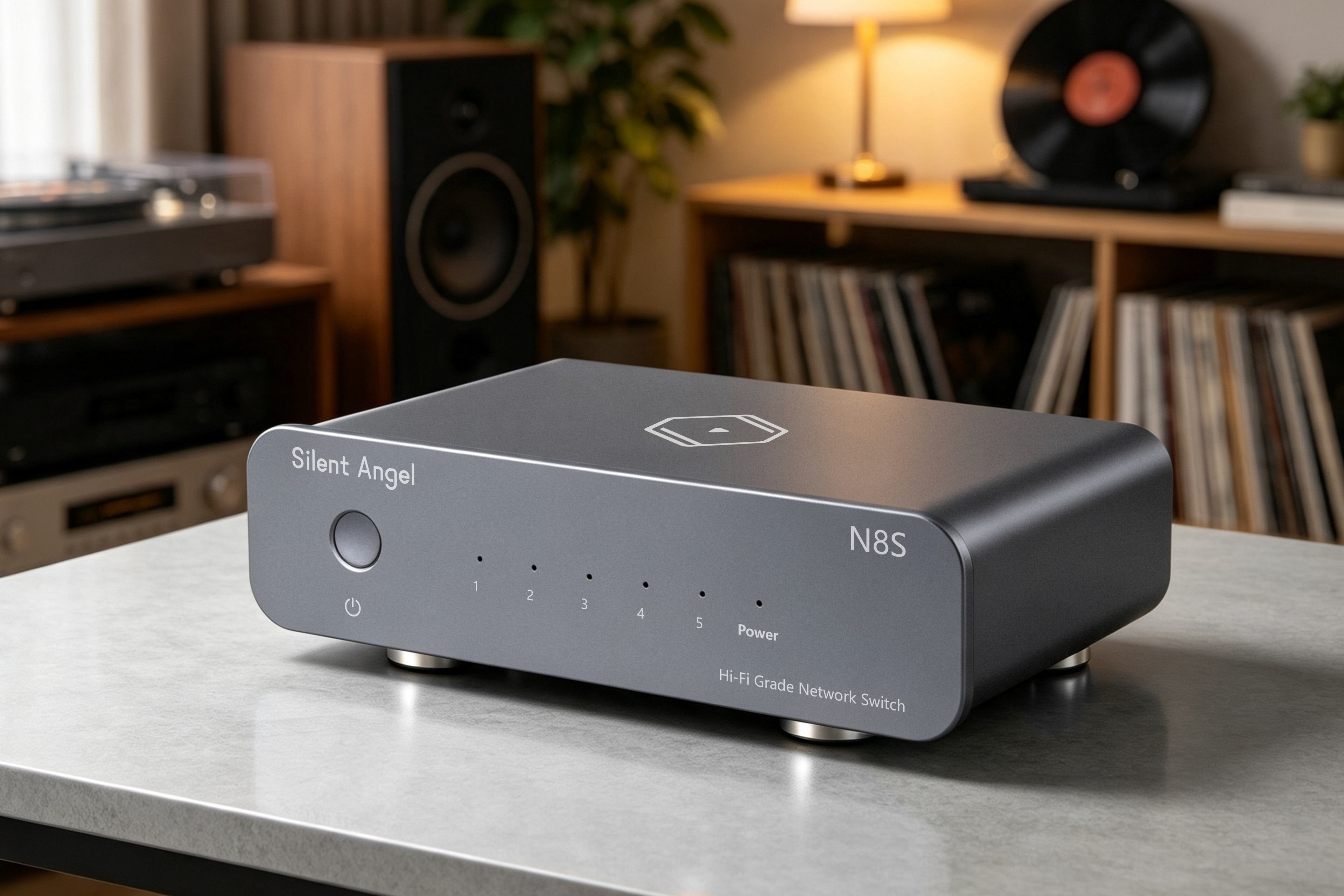

Built for the Digital Audio System

The N8S is designed to serve as the network foundation for a high-performance Hi-Fi system, bringing fiber-optic and copper Ethernet connectivity together in a purpose-built audiophile network switch.

Built for the sound of your network.

Specifications

Product: Silent Angel N8S

Type: Hi-Fi Grade Audiophile Network Switch

Fiber Optic: 2 x SFP / 10 Gbps x 2

Copper Ethernet: 3 x 1Gbps RJ45

Power: 12V / 1A DC input

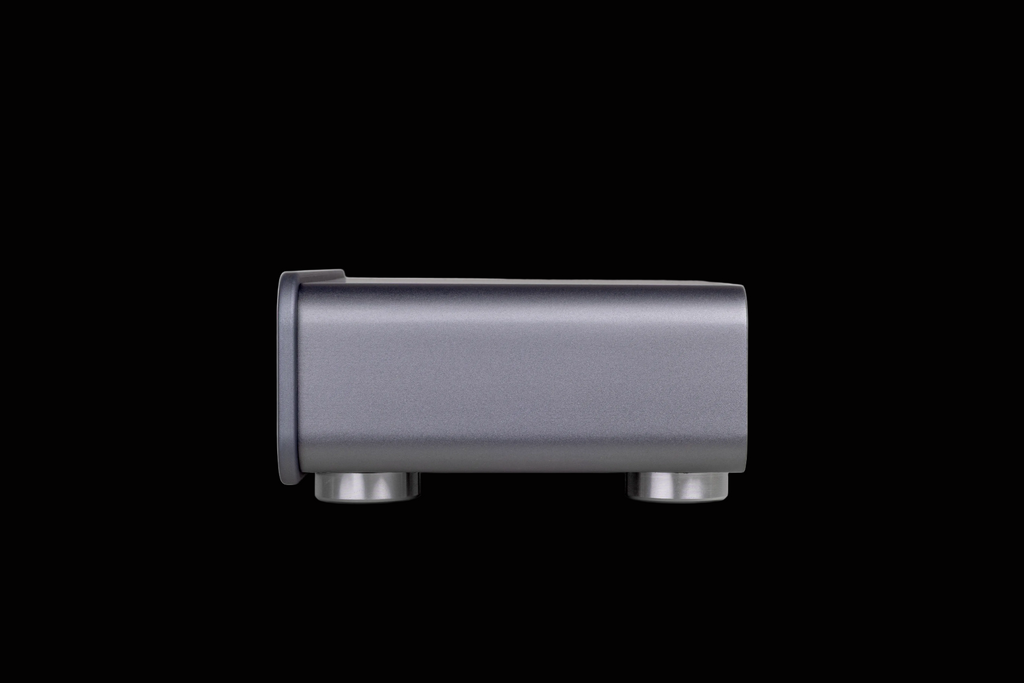

Dimensions: 228 x 70mm x 60 mm (front) / 208 x 60 mm x 60mm (back)

N8S - A new standard in Hi-Fi connectivity.
